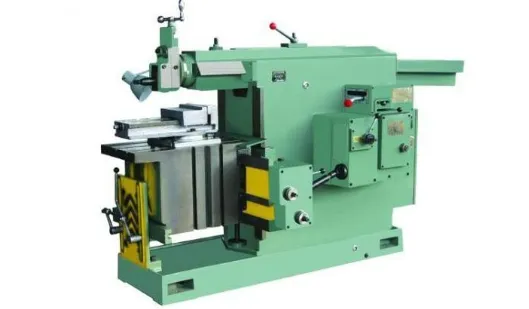

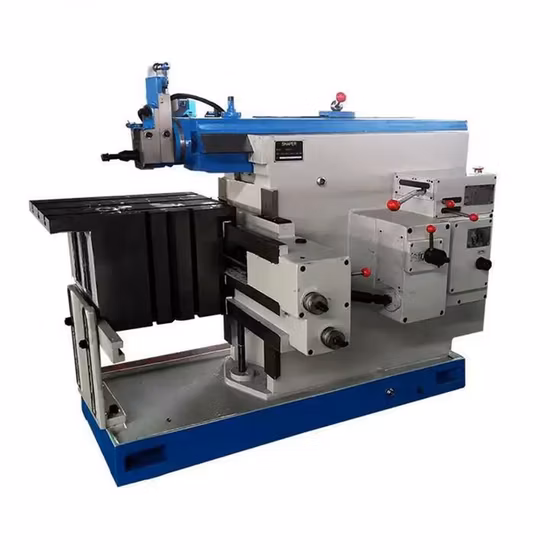

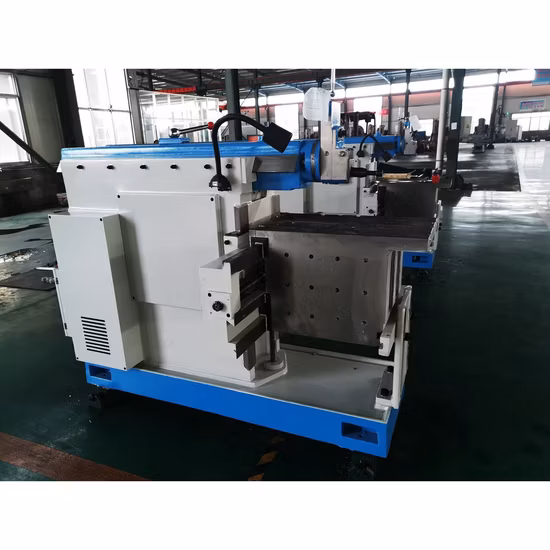

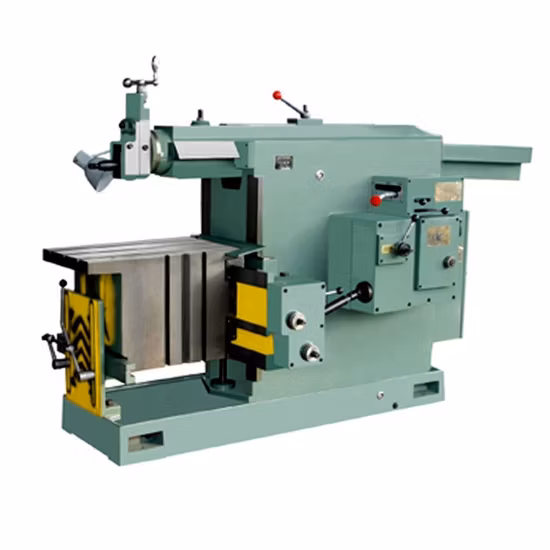

Senmo Shaping Machine Bc6063 Bc6066 Shaper Machine
Our ServicesWhat we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is ava
Description
Basic Info.
Model NO. | BC6063 |
Shaping Machine Type | Small Type |
Precision | Precision |
Certification | CE |
Condition | New |
Worktable Maximum Moving Distance (Horiz | 630mm |
Worktable Maximum Moving Distance (Verti | 360mm |
RAM Underside to Table The Maximum Dista | 385mm |
Maximum Planing Length | 630mm |
Transport Package | Full Closed Plywood Box |
Trademark | SENMO |
Origin | China |
HS Code | 84612010 |
Product Description
Planing Machine BC6063,BC6066 Feature |
·Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision and suitability for strong planing. ·The tool holder has an automatic tool lifting mechanism, the machine tool handles are centralized, and the operation is convenient. |
Specifications | BC6063/BC6066 |
Maximum planing length | 630/660mm |
Ram underside to table the maximum distance | 385mm |
Worktable maximum moving distance (horizontal) | 630mm |
Worktable maximum moving distance (vertical) | 360mm |
The turret maximum vertical travel | 120mm |
Ram reciprocating frequency per minute | 14/20/28/40/56/80 times/min |
Main motor | 3kw |
Tool section(width x thickness) | 20x30mm |
T slot | 18mm |
Max swivel angle of the toolhead | ±60° |
Worktable size(LxW) | 630x400/660x400mm |
Overall size | 2000x1300x1550mm(BC6063) |
2360x1230x1480mm(BC6066) | |
Packing size | 2000x1300x1650mm |
N.W/G.W | 1750kg/1870kg(BC6063) |
1800kg/1920kg(BC6066) |
